There's a very specific kind of quiet that happens mid-session, when your rifle goes from a solid thwack to a soft, disappointing puff. Every PCP (pre-charged pneumatic) shooter knows that sound: air runs out, and you need a reliable way to put it back in. There are three real options (a hand pump, a PCP air compressor, or an HPA tank) and which one makes sense depends less on budget and more on how often you shoot and how much physical effort you want filling to cost you. It's also not an either/or for most serious shooters: a lot of our own customers run a compressor at home and carry a tank to the range.
The three ways to fill a PCP
All three methods do the same job, pushing clean, dry compressed air into your rifle's cylinder up to its rated fill pressure, but they get there in very different ways:
- Hand pump: you supply the effort, stroke by stroke, compressing air mechanically with no power source needed.
- PCP air compressor: an electric (or 12V) unit compresses air automatically, stopping at a pressure you set.
- HPA tank: a large carbon-fiber or steel bottle, filled elsewhere, that you carry to top off your rifle. No compression happens at the point of use at all.
Technical detail: whichever method you use, every high-pressure fill system relies on a check valve to stop air from flowing backward the moment you close off the line, and a quick-disconnect fitting at the fill probe that seals without leaking on every connection. That's what makes connecting and disconnecting possible without dumping pressure in the process.
Hand pump
Quick take: cheapest and fully portable, but every fill costs you physical effort.
A hand pump is the cheapest way into PCP ownership and the most portable: no electricity, no compressor to carry, just the pump itself. The trade-off is physical: multi-stage hand pumps typically need real effort per stroke as they get closer to fill pressure, and topping off a large-capacity cylinder or a big-bore rifle by hand is physically demanding, especially near the top of the fill. It's a reasonable choice if you shoot occasionally and don't mind the effort, or as a backup when you're away from power. It stops making sense once you're filling often, filling big-bore cylinders, or filling multiple rifles in a session.

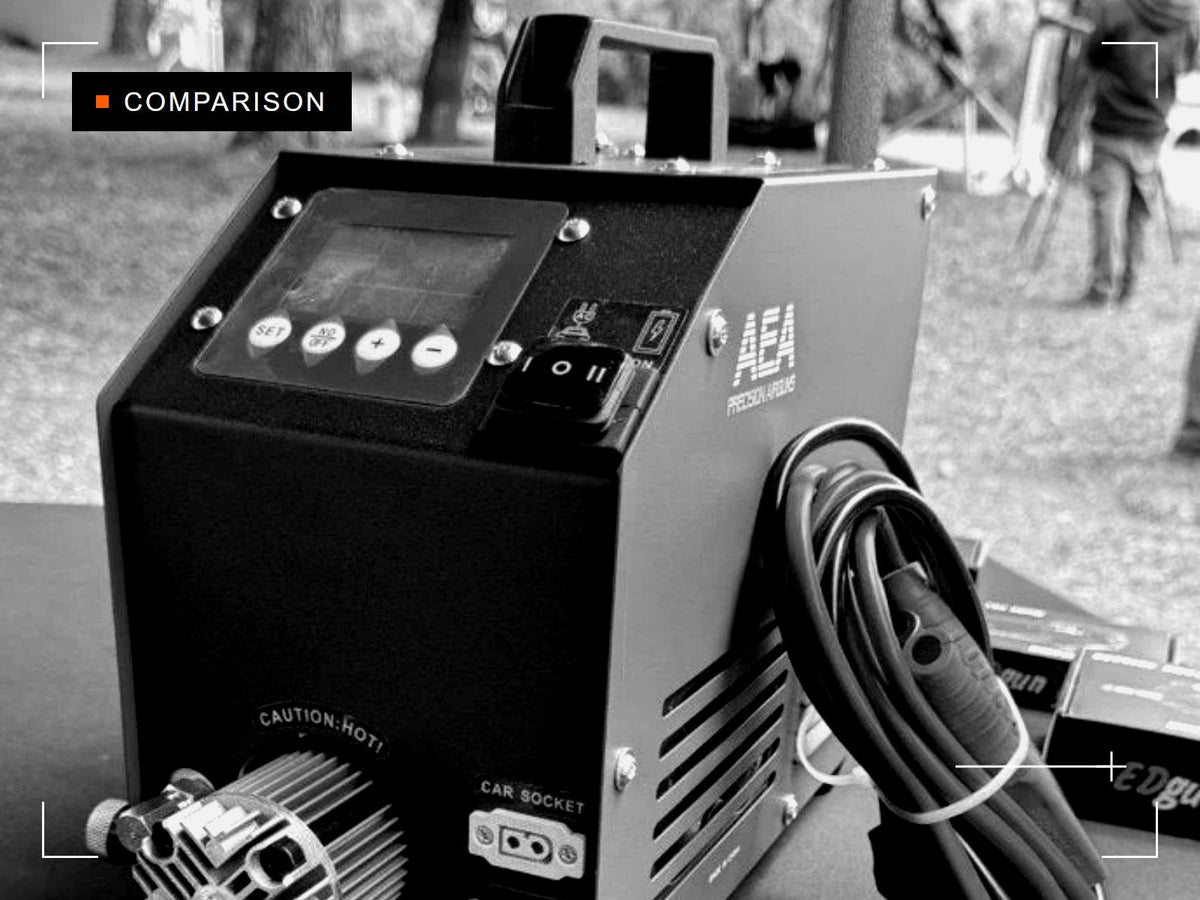

PCP air compressor (the workhorse)
Quick take: set the pressure once; it fills and stops on its own.
This is where most serious PCP shooters end up, and our own AEA compressor is the single best-selling product in the AEA lineup by revenue, more than any individual rifle. Our compressor is oil-less by design (no lubrication of any kind, ever, and forcing oil into it will damage it and void the warranty), and it runs on either a 110/220V outlet or a 12V supply, so it works at home or off a vehicle battery at the range.
It's built around two safety cut-offs you set yourself: a pressure cut-off (matched to your rifle's maximum fill pressure) and a temperature cut-off, with a cooling fan that kicks in automatically once the internal temperature climbs and keeps running until it cools back down. The compressor won't let you overheat it or overfill past what you've told it to. You set your target pressure once, connect the fill probe, and the compressor stops on its own when it gets there. No standing over it, no counting strokes.
The real advantage over a hand pump is consistency and zero physical effort: fill after fill, at exactly the pressure you set, without physical fatigue. The trade-off is you need a power source and a bit more counter space than a hand pump.
HPA tank
Quick take: fast, portable top-offs at the range, but the tank itself still has to be refilled, usually from a compressor.
An HPA (high-pressure air) tank, a large carbon-fiber or steel bottle, works differently from the other two: you don't compress anything yourself at the point of use. You fill the tank itself (usually from a pcp compressor, at home or at a dive/fill station), then carry it to top off your rifle by simple pressure equalization. Our Element Regulated Air Tank is built for exactly this: a 310 bar carry tank that lets you get several fills at the range without hauling a compressor or pump with you.
The appeal is portability and speed: no pumping, no waiting on a compressor cycle, just connect and fill. The trade-off is that a tank is a buffer, not a source. It runs out too, and needs to be refilled from something else eventually (almost always a compressor).
Fill pressure basics
Quick take: check your rifle's maximum fill pressure before setting the compressor, and never fill above it.
Every PCP cylinder has a maximum working pressure, and it's not universal across every AEA rifle, so always check your specific model before filling. As a general reference point, AEA's own big-bore Megalodon platform is rated to 310 BAR / 4,500 PSI working pressure unless a specific model states otherwise, and our AEA PCP Air Compressor (480 BAR / 7,000 PSI) ships with its pressure cut-off defaulted to 7,000 PSI, adjustable down to match whatever you're filling.
Overfilling past a cylinder's rated pressure risks damage to the rifle and isn't covered under warranty. This is the one step in the whole process where "close enough" isn't good enough.
As an added safety layer, high-pressure systems typically include a burst disc rated below the cylinder's actual burst pressure, designed to vent air in a controlled way before a structural failure could occur. It's not something you'd ever rely on in normal use.
How to fill a PCP air rifle, in short: confirm your rifle's max fill pressure, set your compressor's (or your own, on a hand pump) cut-off to match, connect the fill probe securely, fill slowly while watching both gauges, and bleed the fill hose before disconnecting.
Which is right for you?
| Hand pump | PCP air compressor | HPA tank | |
|---|---|---|---|
| Upfront cost | Lowest | Higher | Moderate |
| Effort per fill | High (manual) | None (automatic) | None (just connect) |
| Power needed | No | Yes (110/220V or 12V) | No, at point of use |
| Best for | Occasional shooting, backup | Frequent shooting, home base | Portability at the range |
| Needs refilling from | — | Wall/vehicle power | A compressor, eventually |
Quick take: occasional shooter → a hand pump is fine. Regular shooter or big-bore owner → get the compressor. Both, and you travel a lot → compressor at home, tank at the range.
If you shoot occasionally, a hand pump works fine. If you shoot regularly, and especially if you're running a big-bore rifle that eats air faster, a PCP compressor removes the effort entirely and is the setup most AEA owners settle into first. If you're mobile a lot, pairing a compressor at home with a tank you carry gives you both: unlimited fills at home, zero-effort top-offs in the field. You'll find all three options in our PCP fill collection.
